| Item | Specification |
|---|---|
| Product Name | UV LED Curing system |
| Model Number | JSY-12030-365-H |
| Irradiation Area | 120*30 (mm) (L×W) |
| Dimensions | 166× 90 × 120mm (L×W×H) |
| UV Wavelength | 365 nm （385nm, 395 nm or 405nm wavelength is optional） |
| Control Mode | Three control modes are available: Manual control,Remote control,Timing, which can be flexibly switched according to different production scenarios. |
| Cooling Method | Air Cooling |
| Power Adjustment Range | 10% - 100% |
| Life Time | ≥10,000 Hours |
| Peak Irradiance | 2500 mW/cm² (Tested at 10 mm Height) |
| Power | 500 W |
| Voltage | 220 VAC |
✅ Packaging & Printing
Fits flexo/screen/digital printing
For labels, color boxes, flexible packaging (varnishing/laminating/bonding)
Advantage: Uniform gloss, anti-scratch, solvent-free | Meets food/beauty packaging eco-standards
✅ Electronics Manufacturing
Ideal for component encapsulation, PCB coating, FPC bonding, semiconductor assembly
Advantage: Low-temperature curing (no thermal damage) | High-strength bonding + insulation protection
✅ Automotive Industry
Applied in lamp assembly, interior bonding, body coating curing
Advantage: Withstands high/low temp & damp heat | Matches high-speed production lines | Boosts lightweight mass production
✅ 3C & Consumer Electronics
For phone/PC: housing coating, screen lamination, key bonding
Advantage: Balances rapid mass production & precision | Wear-resistant, anti-yellowing, aesthetic
✅ Other Industries
Covers medical supplies, building materials, new energy components
Advantage: Customizable wavelength | Eco-friendly | Cures plastic/metal/glass/composites

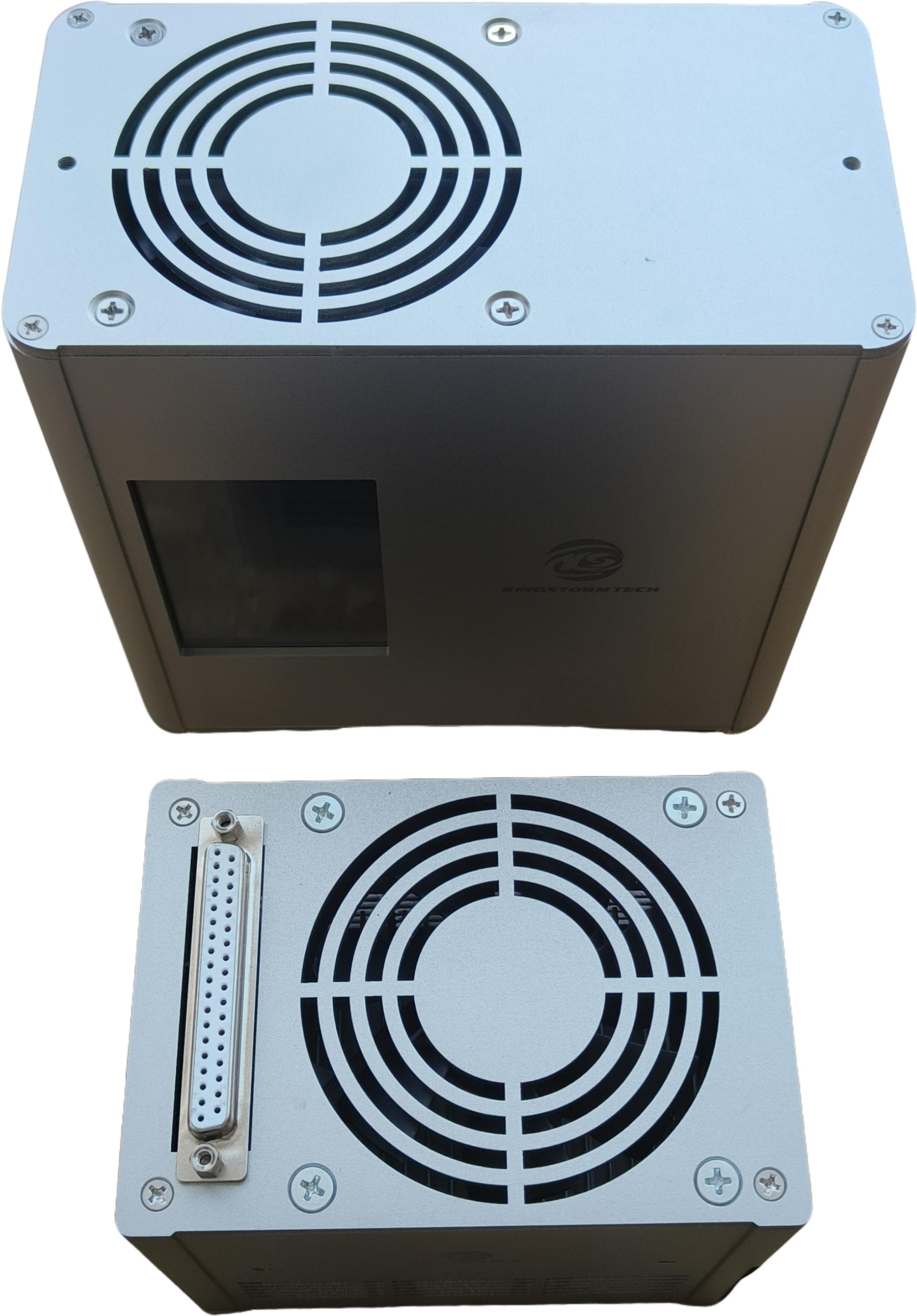

Configuration
(1) Power Supply (P-12030-H)
✅Intelligent Control
Equipped with a true-color full touch screen, supporting seamless switching between manual and automatic modes. The operation is intuitive and convenient, suitable for diverse production scenarios.
✅Precise Power Regulation
The output power can be adjusted in a range of 10% - 100%. It can be precisely calibrated according to curing process requirements to ensure consistent curing effects.
✅Safety Alarm
Fault alarm information is displayed in real time with visual cues, and alarm signals are output synchronously. This enables timely detection of equipment abnormalities and reduces downtime risks.
(2)Irradiator (I-12030-H)
✅Uniform Irradiation
Adopting an LED matrix arrangement design, it ensures the uniformity of radiation illuminance from the source, effectively eliminates curing blind spots, and improves product yield.
✅Flexible Adaptability
Compatible with RT series shielding brackets and conveying systems, and supports manual lifting adjustment. It can easily meet the curing requirements of workpieces of different specifications, featuring convenient and efficient installation and commissioning.
Product Description
The JSY‑12030‑365‑H air‑cooled UV‑LED curing lamp is a high‑performance industrial curing device developed for fast curing of UV adhesives, inks and coatings.
It provides peak irradiance of 2500 mW/cm² at 10 mm working height over an effective irradiation area of 120×30 mm, delivering rapid curing, shortening cycle‑time and improving production‑line efficiency.
365 nm is the standard wavelength, with optional 385 nm, 395 nm and 405 nm available, matching the curing requirements of various UV adhesives, varnishes, printing inks and photoresist materials.
Compact lamp‑head dimension: 166×90×120 mm(L×W×H), saving installation space for integration into automated assembly‑lines, workstations and jigs. Adopting air‑cooling system with no external water piping required for simple installation and commissioning.
Stepless power output adjustable from 10%‑100%. Three control modes: manual, remote‑control and timing. PLC‑connection supported for full‑auto production‑line synchronization.
With a long LED service life ≥10,000 hours, it greatly reduces lamp‑replacement frequency and downtime‑maintenance cost compared with traditional mercury lamps. Mercury‑free, ozone‑free and free of infrared thermal radiation, it avoids yellowing or deformation of heat‑sensitive work‑pieces.
Rated power: 500 W, input voltage: 220 VAC. Widely applied in PCB component bonding & sealing, label printing curing, electronic‑component encapsulation, craft varnishing, inline adhesive curing and other industries. Custom‑tailored solutions for irradiation area, wavelength and control system are available according to your working‑condition requirements.
